Home ICFS Mechanical Anchors ICFS Through Bolt Anchor TBA

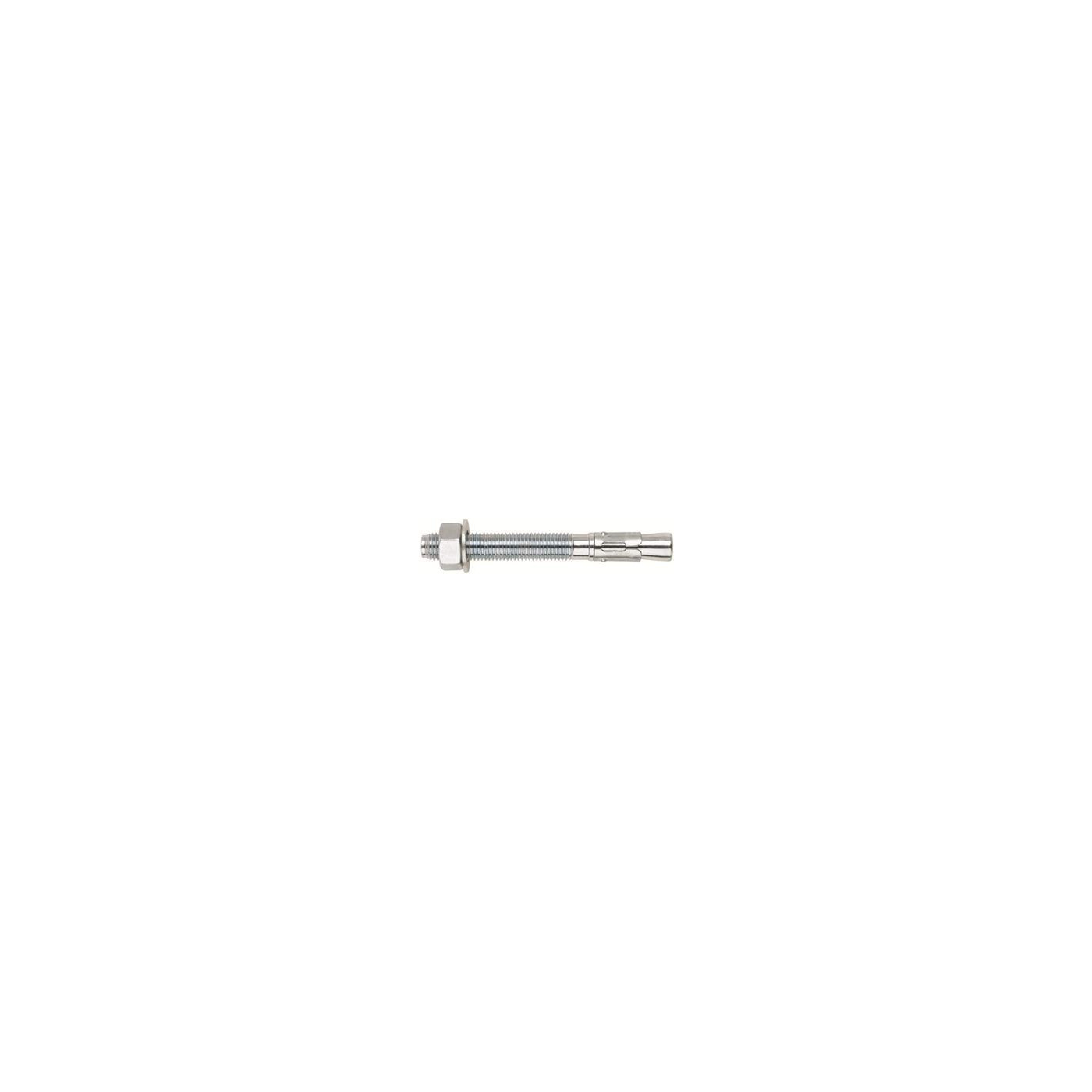

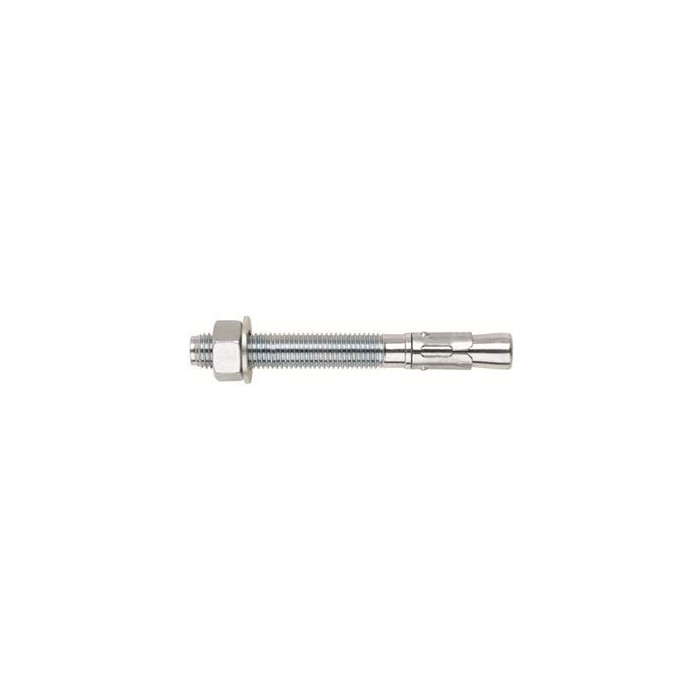

ICFS Through Bolt Anchor TBA 10 x 150 mm (Pack Of 10)

Be the first to review this product

₹539.1

IN STOCK SKU#: TBA10150
Regular Price : ₹599

Select Quantity

10 x 75 mm 10 x 90 mm 10 x 120 mm 10 x 150 mm
12 x 80 mm 12 x 100 mm 12 x 120 mm 12 x 150 mm 12 x 250 mm
16 x 100 mm 16 x 145 mm 16 x 250 mm
20 x 170 mm 20 x 220 mm
10 20 25 50 100
  • For use in cracked and non-cracked concrete
  • For use in cracked and non-cracked concrete
  • For medium-high loads
  • Previous installation, or at the drilling of the material to be fixed
  • Wide range of lengths and diameters available: installation flexibility
Brand Name ICFS
Colour Silver
Included Components 10 Pieces of ICFS Wedge Anchor Bolt 10 x 150 mm with Nut and Washer
Material Type Mild Steel
Number of Items 10
Part Number ICFSTBA10150
Size Standard

The Wedge Anchor also known as Sleeve Anchor or Through Bolt Anchor can be installed through the work piece. This saves considerable time in installation avoiding alignment errors and provides an exceptionally efficient retention method for fixing to concrete and stone. Its firm fixing action permits repeated removal and replacement of the nut without weakening the anchorage. As the bolt is driven into the fixing hole the clip is compressed ensuring a tight interference fit. When torque is then applied to the nut the tapered section of the bolt retracts through the clip which expands to create a rapid and permanent grip. As for the internal threaded version TBA-I, it can be installed in normal drill holes without a setting tool.

Features

  • Easy installation
  • For use in cracked and non-cracked concrete
  • For medium-high loads
  • Previous installation, or at the drilling of the material to be fixed
  • Wide range of lengths and diameters available: installation flexibility
  • For static or almost static loads.
